Indoor LED Display EKTA iLVM 6c

Module type: iLVM 6C-Qс

Pixel pitch: 6.04 mm

Environments: Indoor

LED arrangement: 3 IN 1 SMD, EKTA Selected 3528

Module resolution: 64 × 64 pixels

Module dimensions: 386.4 × 386.4 × 85 mm

Module weight: 4.2 kg

Pixel density: 27,434 pixels/m²

Minimum viewing distance: 6 m

Maximum brightness: 2,500 nit

Calibrated brightness: 2,000 nit

Viewing angle: 145° / 140°

Color processing: 18 bit

Display colors: up to 18,000 trillion (54 bit equivalent)

Refresh rate: 7,200 Hz

Scan rate: 1/8 scan

Driver: Texas Instruments (TI)

Power consumption (per panel):

– average: 50 W

– maximum: 150 W

Control system: EKTA ERMAC (integrated)

Power supply (single phase): 110–253 V, 50–60 Hz

Power supply (three phase): 400 V +10% / −20%, 50–60 Hz

Operating temperature: +1 °C to +40 °C (80% humidity)

Lifetime: >100,000 hours (>11.5 years 24/7)

The EKTA iLVM 6C-Qс is a robust indoor LED module designed for large venues, TV productions, and high-capacity events that require stable performance and consistent image quality. Powered by the integrated EKTA ERMAC control system and Texas Instruments (TI) driver technology, the display delivers accurate colour reproduction, uniform brightness, and reliable grayscale behaviour across the entire panel surface.

Factory-level 18-bit colour processing ensures smooth tonal gradients and natural transitions, while the high 7,200 Hz refresh rate guarantees camera-friendly performance without flicker or artefacts. With brightness starting from very low calibrated levels, the iLVM 6C-Qс maintains stability in both dark and bright scenes — essential for modern broadcast environments.

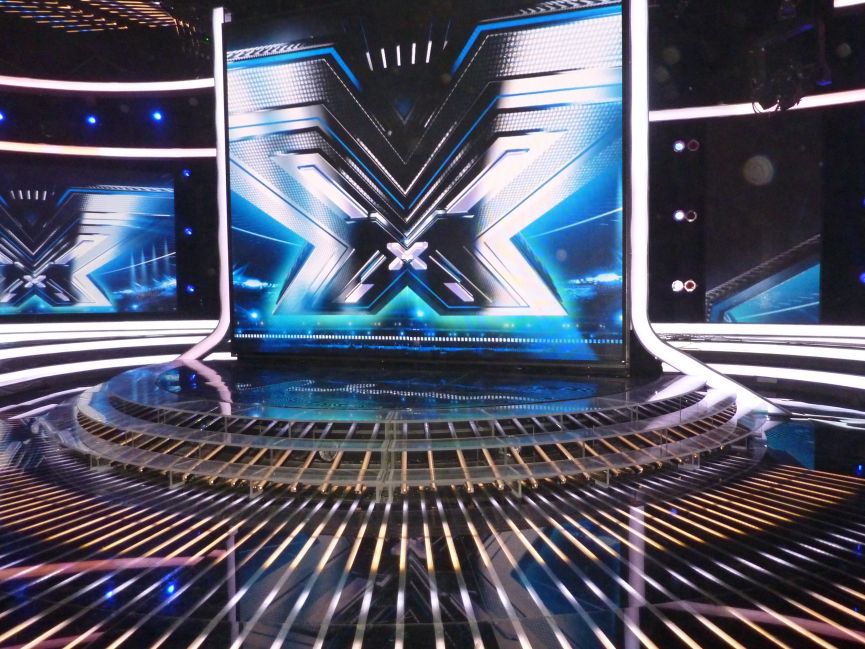

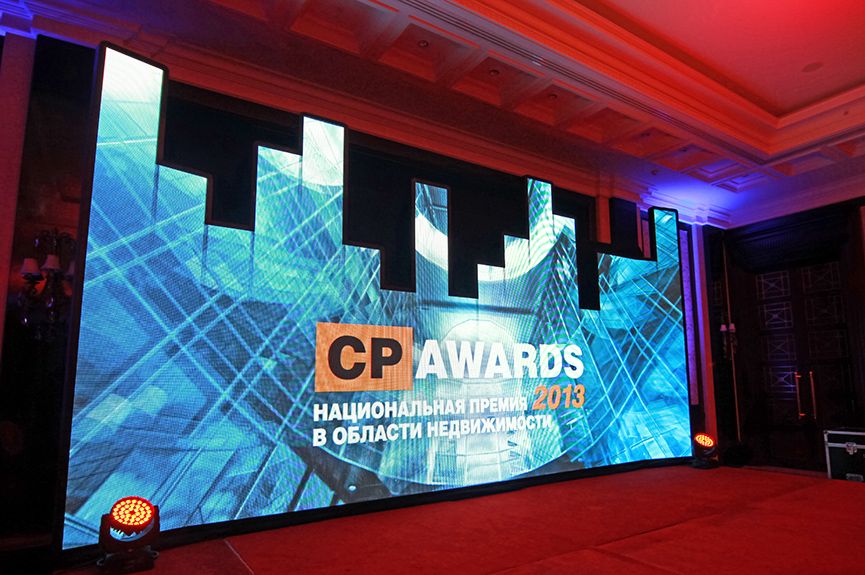

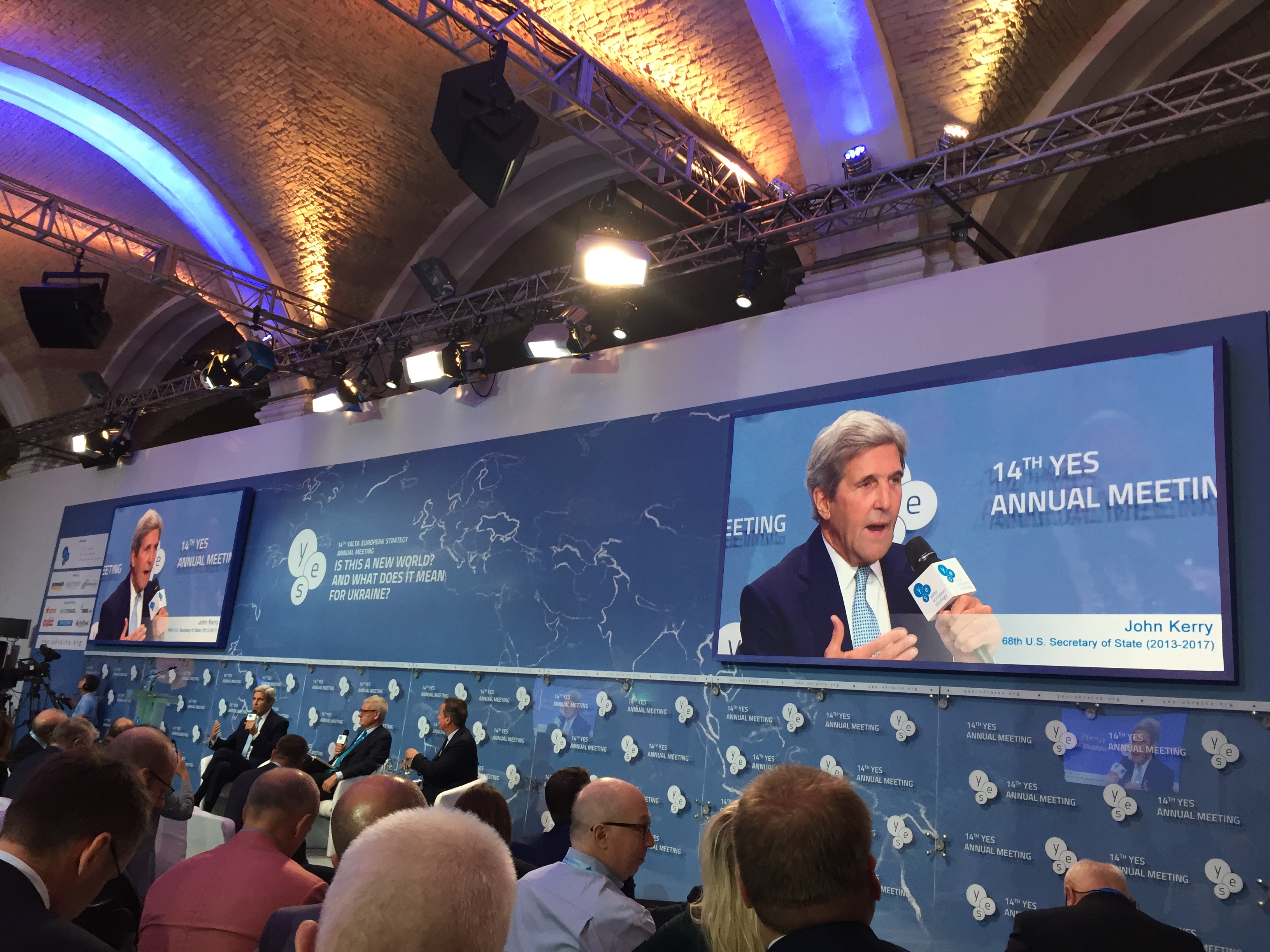

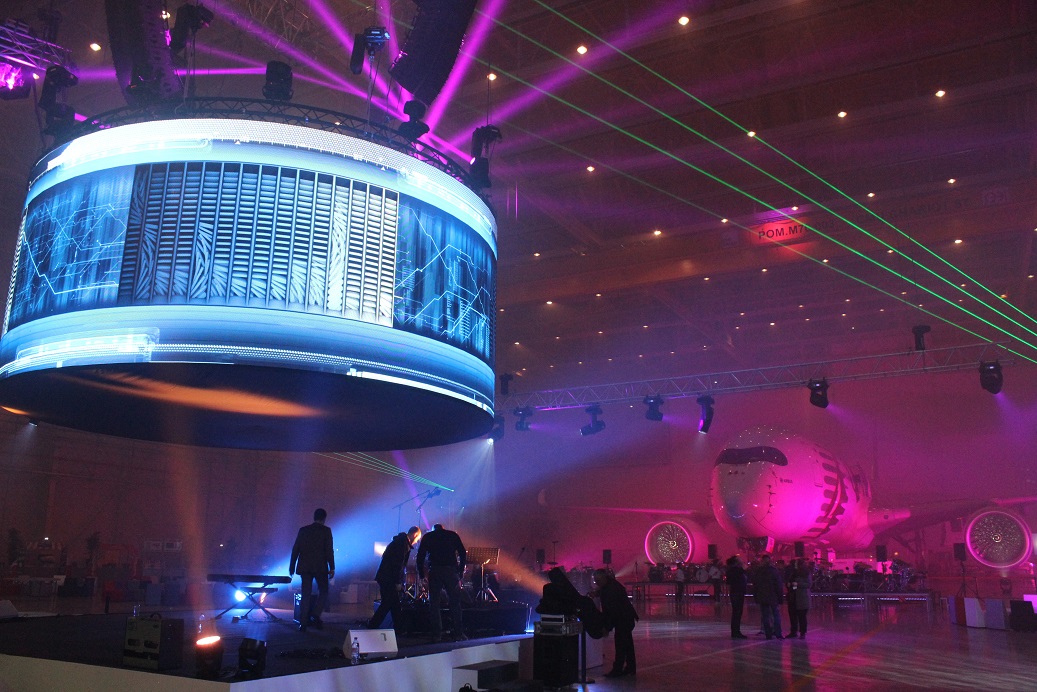

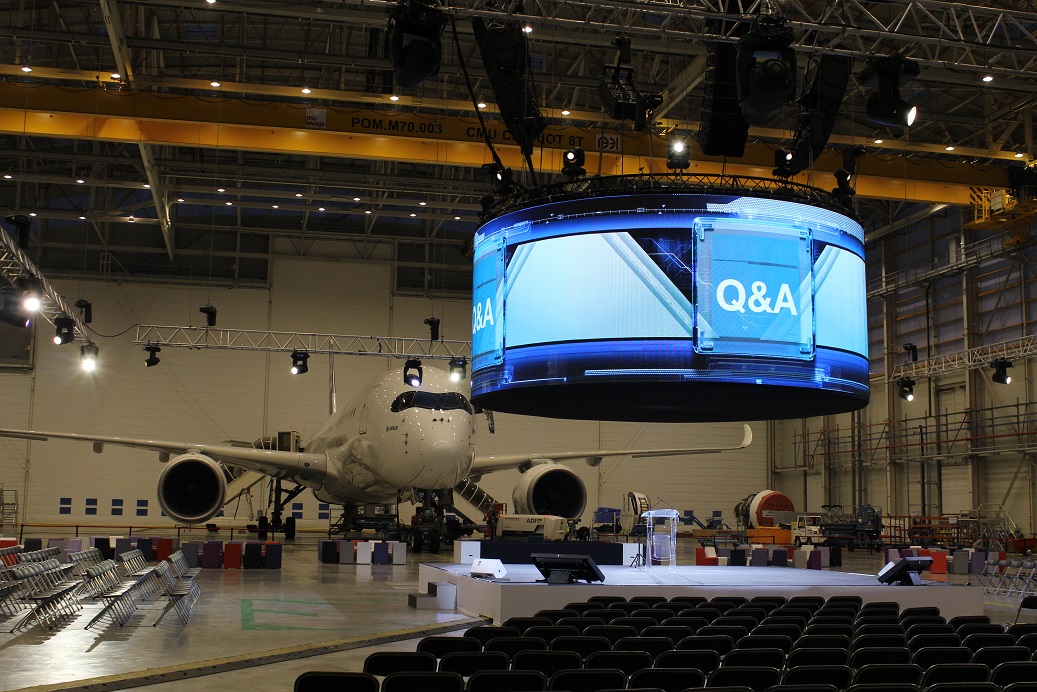

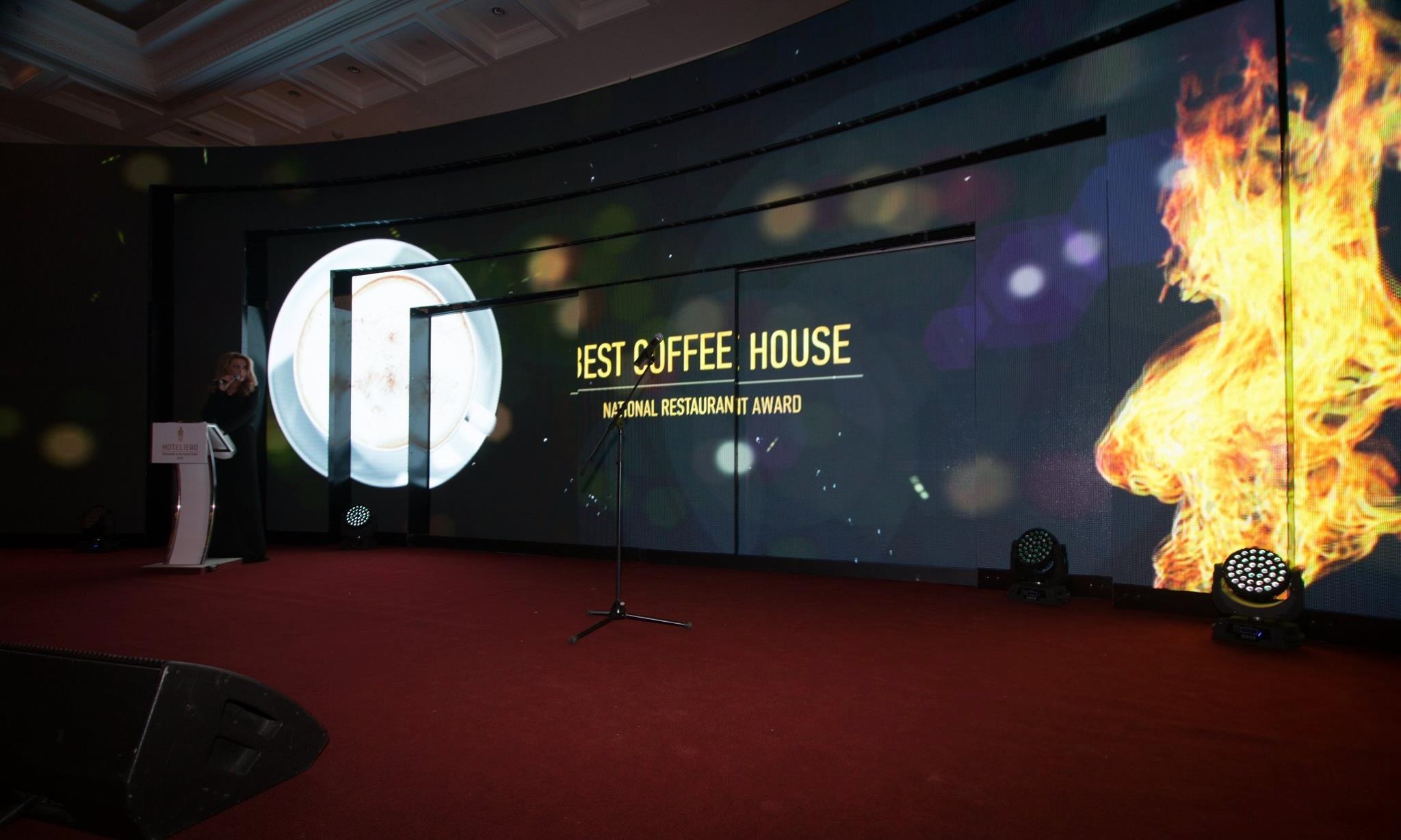

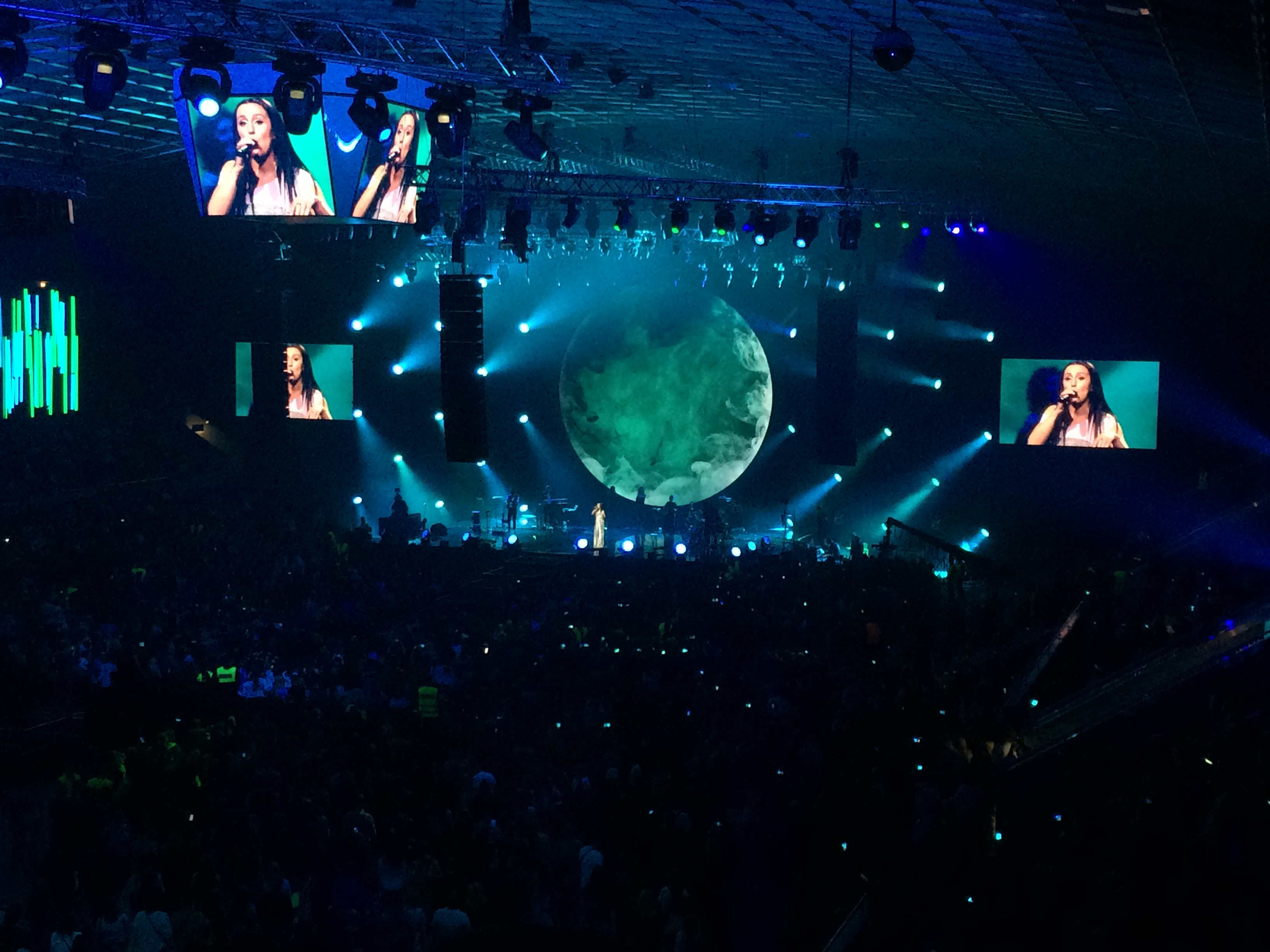

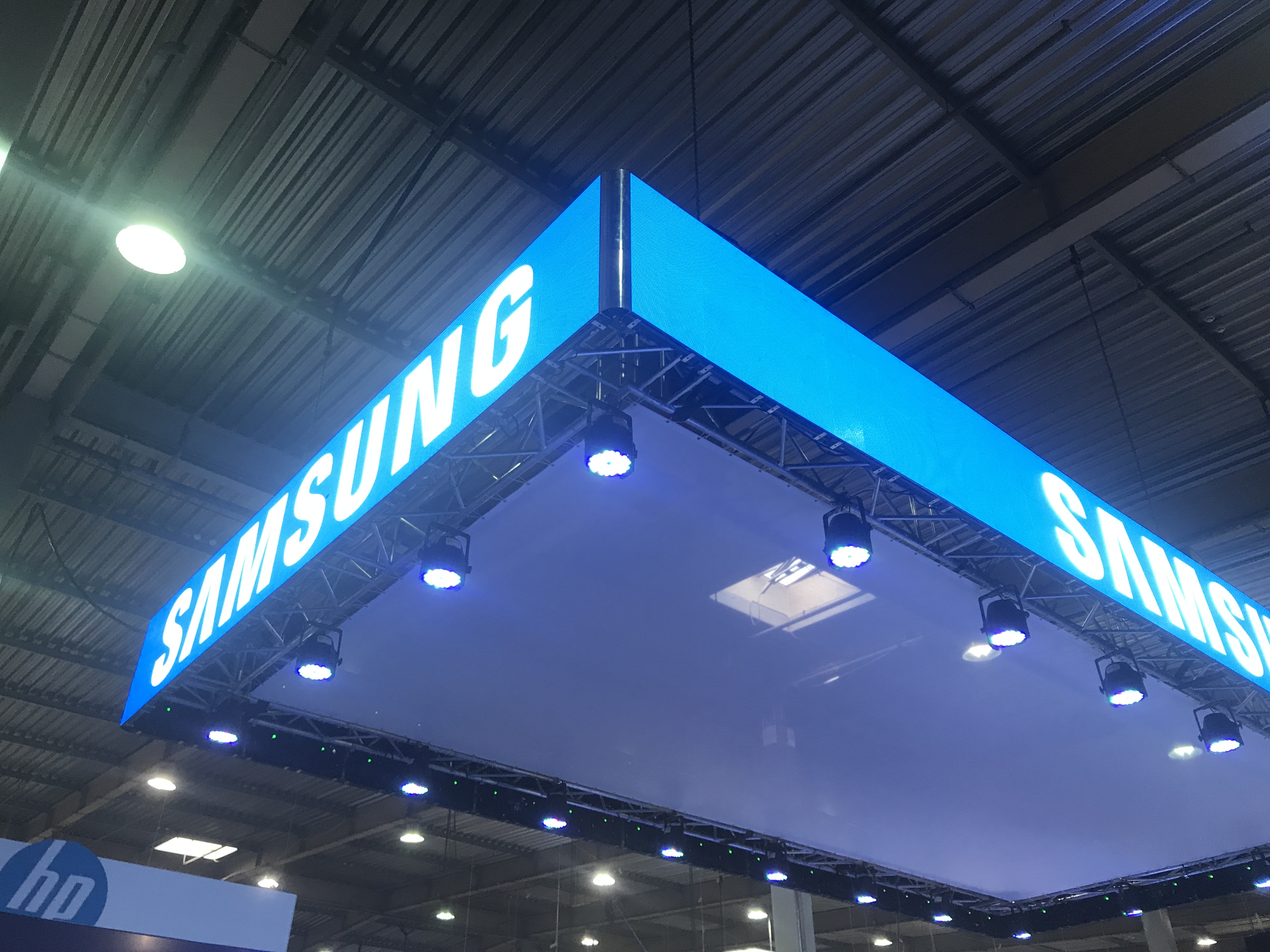

Thanks to its durability and predictable on-air behaviour, this module has been successfully used in a number of well-known television shows, live recordings, and large indoor events, proving its reliability in demanding professional setups.
