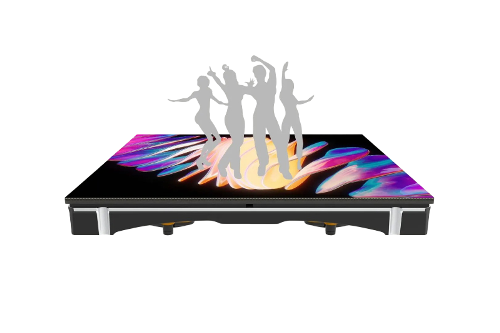

LED Floor Infiled DFmk2
Model: IL-RSS-ORDF3.9mk2
Pixel pitch: 3,91 mm
Environments: Outdoor
LED arrangement: 3 IN 1 SMD
Cabinet resolution: 128 х 128 pixels
Cabinet dimensions: 500x500x84.4mm
Cabinet weight: 11.5kg
Max Load-bearing (3 times the safety factor): 1500kg/m²
Installation height range (adjustable): 115mm-130mm
Maximum brightness: 1200 nits
Calibrated brightness: 1,000 NIT
Brightness adjustment: 0～100% 256 levels
Viewing angle: 120°/120°
Contrast ratio: 12000:1
Color temperature: (Default, Adjustable) 3500-9000K adjustable (default value 6500K)
Display color: 4.4T
Greyscale: 14 bit
Power consumption: average 60 W/Panel, maximum 180 W/Panel
Operating power source: 100-240V AC 50-60Hz
Control System: Novastar, A10S Pro
Frequency: 50-60Hz
Refresh rate: 7,680 Hz
Scan rate: 1/8
Operating temperature: -20℃ ~ +50℃
Operating humidity: 10-90% RH Non-condensing
IP Rating (Front/Rear): IP65

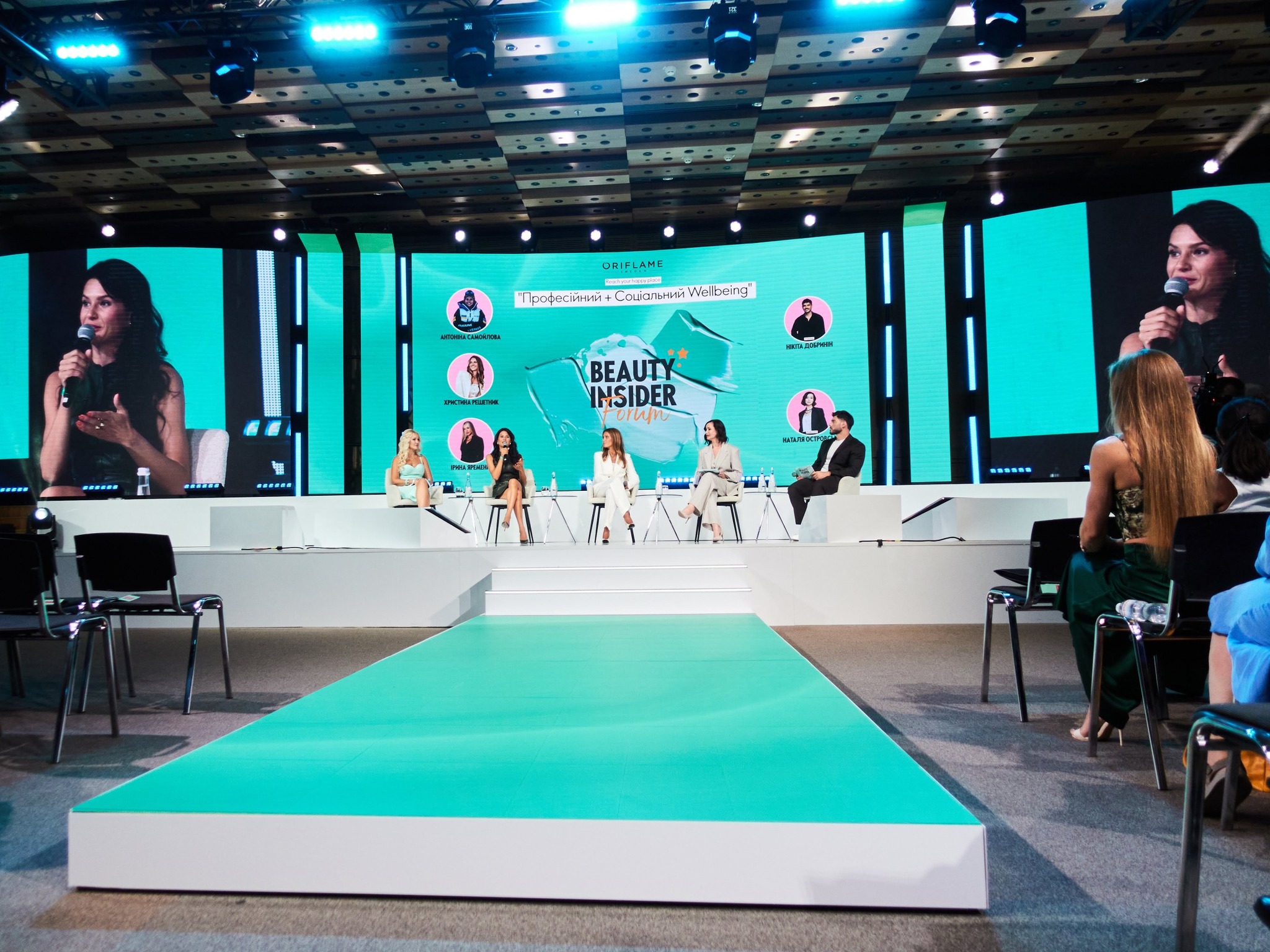

The DFmk2 Series is a high-performance digital LED floor system engineered for both indoor and outdoor applications. It combines a high load-bearing structure, increased cabinet protection, and fast assembly for reliable use in events, installations, and interactive environments.
The LED floor features a matte, anti-reflective surface, providing uniform blacks and consistent visual performance under any lighting conditions and at wide viewing angles. Supporting loads of up to 1500 kg/m², the system is suitable for performances, dance floors, automotive applications, and other heavy-duty scenarios.
Cabinets are supplied flat and equipped with adjustable feet, allowing quick leveling and accurate alignment even on rough or uneven surfaces. With quick disassembly and front-service access, the DFmk2 Series offers a dependable and efficient solution for temporary setups, touring events, and environments where speed, durability, and visual performance are essential.
