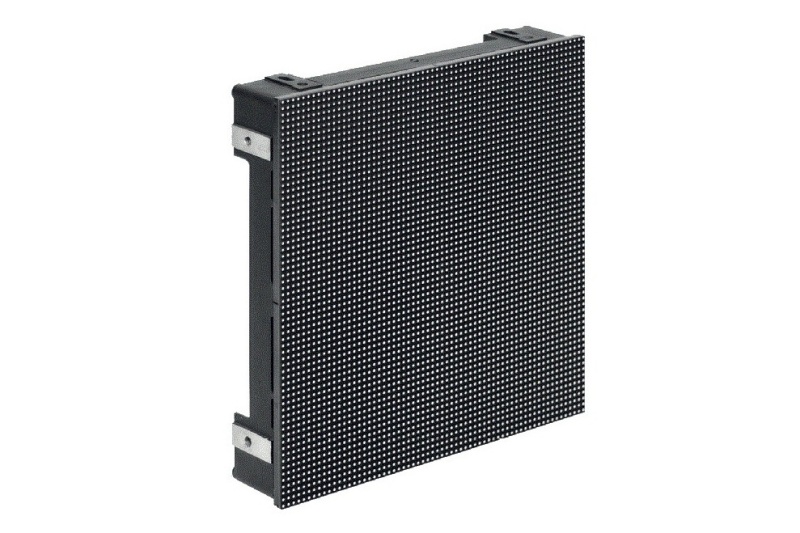

Outdoor LED Screen EKTA LVM 9c
Model: EKTA LVM 9C
Pixel pitch: 9.66 mm
Environments: Outdoor, IP65
LED arrangement: 3 IN 1 SMD (SMD 4045, Nichia)
Cabinet resolution: 40 × 40 pixels
Cabinet dimensions: 386.4 × 386.4 × 85 mm
Cabinet weight: 5 kg (display weight: 33 kg/m²)
Maximum brightness: 9,000 nits
Calibrated brightness: 7,000 nits
Viewing angle: 150° / 90°
Display color: up to 281 trillion (48-bit)
Greyscale: 16 bit
Refresh rate: 600 – 32,000 Hz
Scan rate: Static
Light-emitting surface ratio: 19%
Power consumption: average: 90 W/cabinet, maximum: 200 W/cabinet
Operating power source: Single-phase: 110–253 V, 50–60 Hz, Three-phase: 400 V +15%/–20%, 50 Hz
Operating temperature: –30 °C to +40 °C
Operating humidity: up to 98% (at 25 °C)
Lifetime: >100,000 hours (24/7)
The EKTA LVM 9C is a professional-grade outdoor LED display engineered for maximum reliability, visibility, and colour performance in demanding environments. Built on premium components such as Nichia LEDs and Texas Instruments driver ICs, the system delivers exceptional image depth, stability, and long-term durability.
Designed with a static scan architecture, the LVM 9C provides superior brightness, consistent colour accuracy, and minimal flicker—even in complex broadcast and camera-based applications.
With 9,000 nits peak brightness and 7,000 nits calibrated output, the display maintains perfect visibility in direct sunlight, making it ideal for large-scale applications. The LVM 9C is equally suitable for big-format screens in sports arenas and high-brightness outdoor installations such as fan zones, public events, urban signage, and architectural media façades.
Premium LED & Driver Technology
• Nichia LEDs for maximum colour stability, long lifetime (>100,000 h), and high luminous efficiency
• Texas Instruments driver ICs ensuring precise current control, smooth gradients, and low noise
• High 16-bit greyscale performance for refined tonal transitions and detailed imagery
Exceptional Image Stability
• Static scan (no multiplexing) — optimal uniformity, minimal flicker, and excellent camera compatibility
• Refresh rate up to 32,000 Hz — perfect for broadcasting, filming, and dynamic content
Brightness & Visibility
• 9,000 nits peak brightness
• 7,000 nits calibrated brightness
• Wide 150° viewing angle ensures excellent legibility across large audience zones
Powerful LED Control System
• Fully compatible with the EKTA ERMAC control platform
• Advanced colour calibration, stability algorithms, and brightness management
• Seamless integration with large stadium screens, multi-screen systems, and architectural installations
