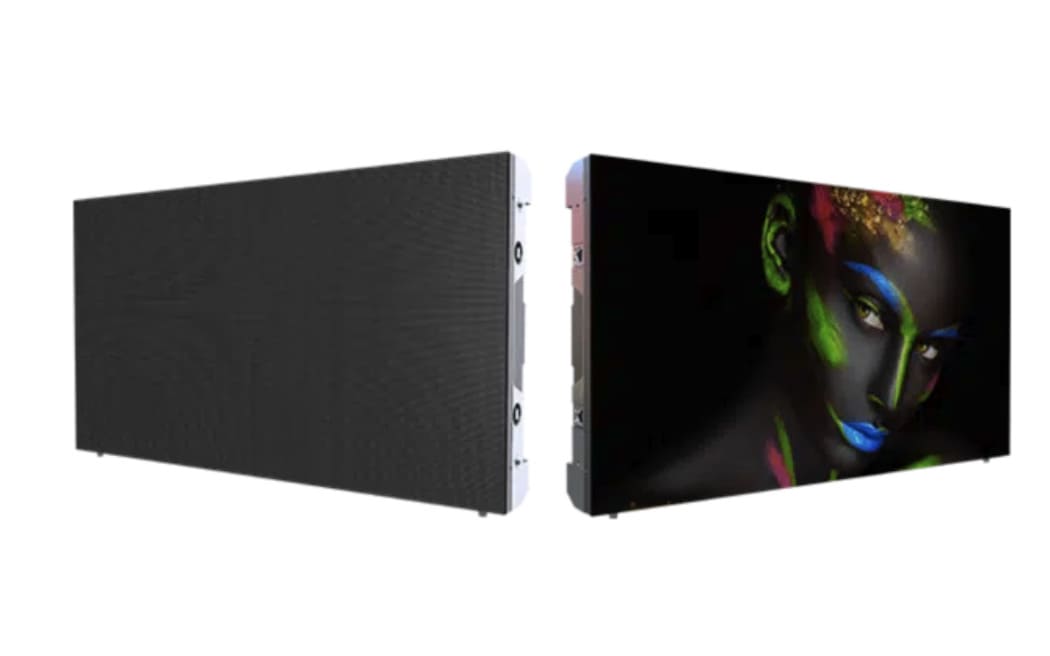

Outdoor LED Screen Infiled ER4.6 pro 500x500
Model: Infiled IL-RSS-ORER4
Pixel pitch: 4.63 mm
Environments: Outdoor mode / Indoor mode
LED arrangement: 3 IN 1 SMD, Nationstar 1921
Cabinet resolution: 108 × 216 pixels
Cabinet dimensions: 500 × 1000 × 68 mm
Cabinet weight: 9 kg
Maximum brightness: ≥ 5000 nit
Color temperature (maximum brightness): 6500K
Color temperature (calibration): 6500K
Viewing angle (customized):
Horizontal: 140°
Vertical: 120°
Power consumption: average 55 W/panel, maximum 165 W/panel
Scan rate: 1/9 scan
Refresh rate: adjustable
– 3840 Hz (outdoor mode — high brightness)
– 7680 Hz (indoor/TV mode — high grayscale, camera-friendly)
Greyscale: 14–15 bit (depending on operating mode)
Receiving card / Control system: EKTA ERMAC
Protection: IP65 front / IP54 rear
Operating temperature: –10 °C to +45 °C
The Infiled IL-RSS-ORER4 is a versatile 4.63 mm LED display engineered for both outdoor and indoor applications. Thanks to the advanced EKTA ERMAC control system, the screen operates in two highly optimized modes:
- Outdoor high-brightness mode — delivering up to 5000 nit for clear visibility in direct sunlight.
- Indoor / TV-friendly mode — enabling high grayscale performance (14–15 bit) and an ultra-smooth 7680 Hz refresh rate, ideal for studio work and broadcast cameras.
A custom optical design provides enhanced viewing angles (140° horizontal / 120° vertical), ensuring consistent image quality from a wide range of audience positions.
This display is an excellent choice for large outdoor events, TV productions, and concerts. It is particularly well-suited for IMAG applications, where the EKTA ERMAC control system delivers minimal, almost imperceptible signal latency, ensuring natural real-time visual performance on stage.
