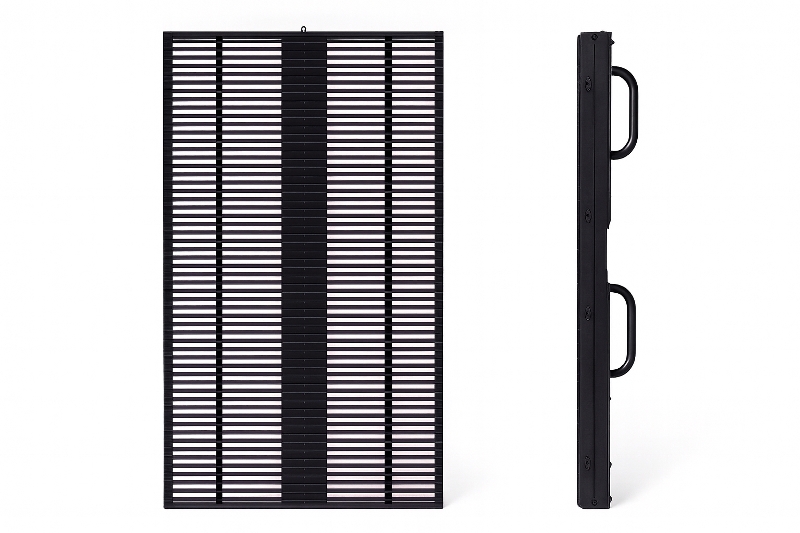

Transparent LED outdoor KTL Flyer 18
Model: KTL FLYER 18
Pixel pitch: 18 mm
Environments: Outdoor
LED arrangement: 3 IN 1 SMD
Cabinet resolution: 32 × 64 pixels
Cabinet dimensions: 576 × 1152 × 154 mm
Cabinet weight: 15.8 kg
Maximum brightness: 4000 nit
Transparency: 50%
Viewing angle: 150° / 150° (customised - without shaders)
Power supply : average 150 W/m2, maximum 350 W/m2
Display weight: 16,5 kg/m2
Protection: IP65
Operating temperature: from –20 °C to +50 °C
The KTL FLYER 18 is a versatile outdoor LED display designed for creative staging, architectural lighting, and large-scale decorative installations. Its 50% transparency makes it ideal for setups where lighting fixtures, scenic elements, or stage effects must remain visible behind the screen, allowing designers to combine LED content with dynamic lighting.
Despite its large panel size, the system is extremely lightweight (16.5 kg/m²), enabling fast installation, easy rigging, and simplified logistics - especially valuable for touring, events, and temporary structures.
A key advantage of this model is its ability to support concave curved configurations, making it suitable for curved façades, and unconventional scenic shapes.
In our customised version, viewing angles have been significantly improved (150°/150°) by removing shader masks, ensuring smooth, even visuals from any audience position.
With up to 4000 nit brightness, the FLYER 18 performs exceptionally well alongside powerful stage lighting, delivering vivid content even in high-output lighting environments.
